Manage Equipment Hierarchy

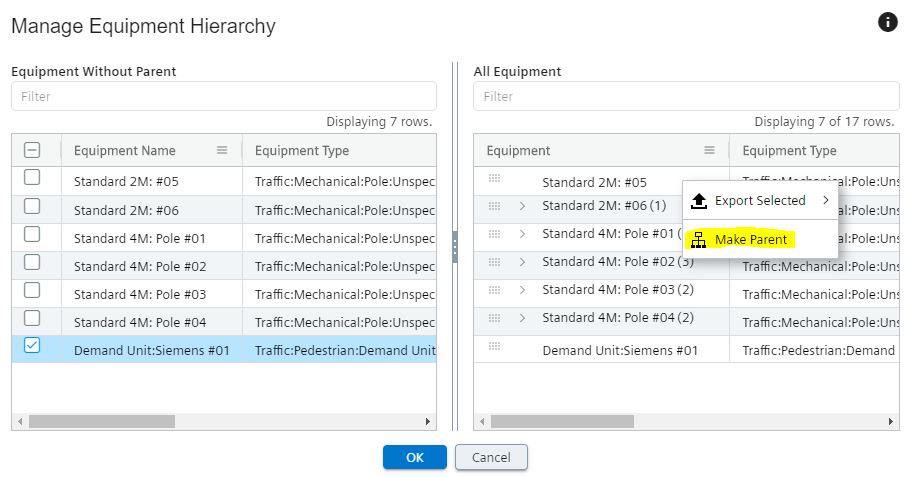

A hierarchy is built by selecting one or more items from the left-hand grid, then right-click on an item in the right-hand grid which is to become their parent.

Repeat this process until the structure is complete. A hierarchy can be constructed with many levels.

Alternatively, items can be selected (using the drag icon) and dragged to a new parent.

Play the following animation to see how items can be rearranged.

Forming a Hierarchical Structure

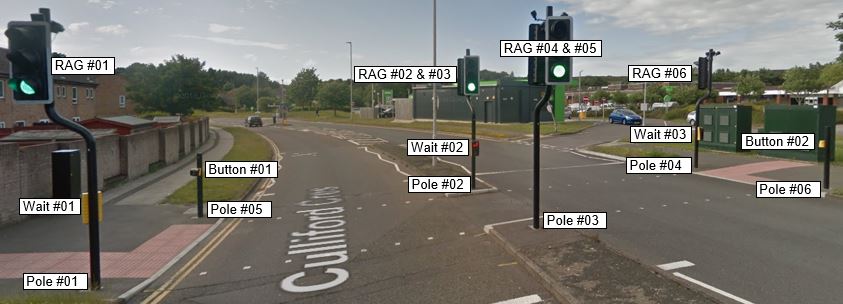

The following example demonstrates how the equipment in this pedestrian crossing can be created and transformed into a hierarchical structure.

Firstly use the equipment wizard to add the items to the site. Click here to see how to add items.

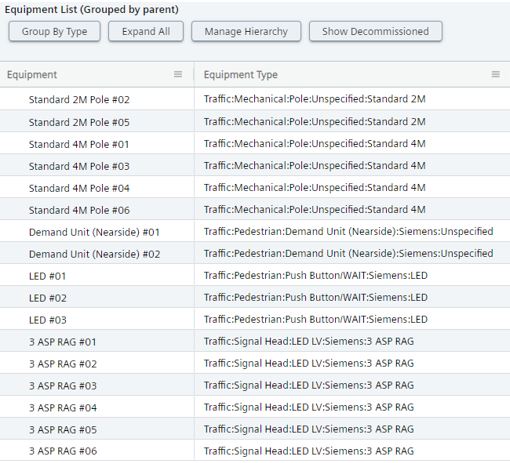

This image shows the equipment now on the site.

Play the following animation to see how to transform the items into a hierarchy. It also shows how to correct mistakes by rearranging items using the drag handles.
